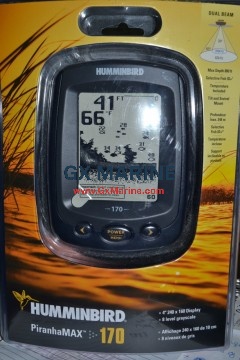

Hummingbird fishfinder PiranhaMAX 170 depth Fishfinder

The PiranhaMAX 170 features a four-inch, eight-level grayscale display with 260 x 160 pixel resolution, so you get a good view of the action--even in direct sunlight.

The PiranhaMAX extremely easy to use. For most anglers, all you'll ever need to do is power on and fish. The PiranhaMAX automatically determines depth and makes adjustments to keep the bottom and fish visible on the display.

Dual Beam Sonar

The PiranhaMAX 170 uses a 200/83 kHz dual beam sonar system with a wide (60 degree) area of coverage. Dual Beam sonar is optimized to show the greatest bottom definition using a narrow (20 degree) beam yet can still indicate fish found in the wide (60 degree) beam when the Fish ID+ feature is turned on. Dual Beam is ideal for a wide range of conditions--from shallow to very deep water, in both fresh and salt water.

Fish ID+ uses advanced sonar processing to interpret sonar returns, and displays a Fish Symbol when very selective requirements are met. When a fish is detected, a fish icon and its depth are displayed above the return that has been classified as being a fish. Three different fish icons represent intensity of the sonar return, and provide an indicator of relative fish size.

Fish and Depth Alarms

When Fish ID+ is on, you can set an alarm to sound when the PiranhaMAX detects fish that correspond to your settings. You can also set a depth alarm from 3 to 99 feet--an audible alarm sounds when the depth is equal to or less than the setting.

With one button, the PiranhaMAX? 170 packs a bite. One touch, that?s all it takes to get easy access to all of the advanced features of the PiranhaMAX? 170 fish finder. It is compact, simple to operate and affordable!

Quickly access Fish ID+, fish alarms, depth alarms, zoom ?and more. New improved head design offers a contrast enhanced, clear edge grayscale display, ensuring you?ll see more onscreen, even in direct sunlight. Simplicity and performance!

Features:

• Water surface temperature included as standard
• Displays depth in metres, feet or fathoms
• Fish ID+? target identification marks fish with depth
• Fish alarm, depth alarm, zoom, sensitivity, depth range and fish ID controls
• Extreme ease of use - simplified one touch menu system
• Advanced zoom function reveals fish and structure near the bottom
• Selectable bottom view - choose Whiteline?, Inverse, Bottom Black, or traditional Structure ID?
• Feature memory remembers unit settings
• Compact unit with full size FSTN LCD screen
• Large, easy to read digital depth and temp readouts
• Backlit display for night fishing
• Transom mount transducer
• Power Input Range: 10-20 VDC

Specifications:

• Depth Capability: 244m
• Display Window Size: 100mm diagonal
• Display Matrix: 240V x 160H
• Display Type: 8 level grayscale
• Power Output: 200 watts (RMS) 1600 watts (peak to peak)
• Accessory: Temp included
• Transducer: Dual Beam
• Operating Frequency: 200 and 83kHz
• Sonar Coverage: 20? and 60? @ -10db
• Mounting: Tilt & swivel mount

What's in the Box

PiranhaMAX 170, Mounting Bracket, Transom Mount Transducer, Installation Hardware/Cables, Owner's Manual
