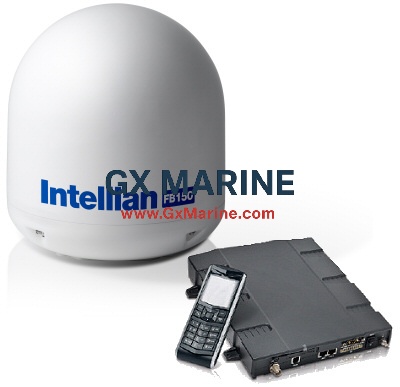

Intellian FB150 Inmarsat FleetBroadband 150 Marine Satellite Communication Antenna System - i4 Matching dome
Intellian FB150is a competitive single-user solution designed to provide global coverage, high quality data & voice for business, operational or recreational applications in a compact size and light weight Above Deck Unit with optional matching dome solution and simple user-installation. The innovative true IP solution can provide number of benefits including:

* Inmarsat's global broadband I4 satellite coverage
* Simultaneous voice and data service
* Compact and reliable hardware powered by Thrane & Thrane
* IP connection for e-mail, inteet, and intranet access including secure VPN
* LAN interface and router features
* IP Handset interface
* Various matching dome solutions to Intellian i-Series (Marine Satellite TV Antenna System)
* Competitive & customized Intellian Inmarsat airtime

Features

* Simultaneous Data & Voice Access - With 150kbps data rates, FB150 provides simultaneous access to data services, voice, and text messaging.
* Reliable Hardware- Powered by Thrane & Thrane FleetBroadband 150 solution, which has unrivalled experience in satellitecommunications, you can be confident of both the equipment quality and the support behind it.
* Global Service Network - As a global solution, not only can you access any of Intellian's global distributors for service, but the Intellian FB150 also benefits from Thrane & Thrane's highly regarded network of Onboard Service Centres (OSC) over 40 locations around the world.
* IP Handset- The rugged plug-and-play IP Handset provides an intuitive user interface on a 2.2" TFT color screen and cutting-edge technology, such as an echo cancellation and noise suppression software ensuring excellent audio clarity.
* Various Matching Dome Solution- Various matching size domes are available for Intellian FB150 together with Intellian i-Series (i2, i3, i4), satellite TV antenna systems. Now you can select a perfectly matched dome for the best appearance on your vessel.
* Practical & Affordable Intellian Airtime- Intellian airtime package price starts as low as $56 per month. Hardware and airtime bundle package is available with additional discounts.

Specifications

Dimension and Weight

i4 Matching Above Deck Unit : 21.3H x ø19.7 in (54 x ø50 cm) / 8.6 lbs (3.9kg)
Below Deck Unit : 10.9 x 9.1 x 1.6 in (27.8 x 23.1 x 4.1 cm) / 4.4 lbs (2.0kg)

Environmental Conditions

Operating Temperature : -13°F to +131°F (-25°C to +55°C)
Operating Humidity : [ADU] EN60945, [BDU] 95% non-condensing at +40°C
Water Ingress : IPX6
Approvals : Inmarsat FleetBroadband/ RTTE/ CE/ FCC
Warranty : 2 Years Parts and 1 Year Labor

Global Services

Voice : Digital 4 Kbps Voice
Standard IP : Up to 150 kbps
SMS : Up to 160 characters
Airtime Service : Inmarsat Airtime by Intellian

Frequency Band

Rx : 1525.0 MHz - 1559.0 MHz
Tx : 1626.5 MHz - 1660.5 MHz
Ch. Width : [Rx] 10.5 - 189 kHz, [Tx] 21 - 189 kHz

Power Supply and Consumption

DC Input Range : 10 - 32V DC (isolated)
Power (max) : 120W @ 10 - 32V (including antenna)
