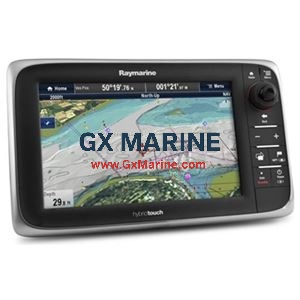

Raymarine e97 HybridTouch Multifunction Display with ClearPulse Sonar

The New e Series multifunction displays - for RIBs, sail boats, fishing and powered craft. With a touch-screen interface backed up with easy-to-use controls and a whole host of features and connectivity, new e Series displays are there for you make them your own.

 e97-Series General Features:

• Raymarine e-Series HybridTouch™ user interface combines full functionality through the use of buttons or through touchscreen
• 9" Sunlight viewable LCD display with LED backlighting
• Built-in high-sensitivity GPS receiver
• LightHouse™ Vector Charts for US Waters
• Wi-Fi video streaming and waypoint synchronization with iOS and Android Devices
• Bluetooth connectivity for optional RCU-3 remote control and multimedia control
• LightHouse II user interface is extremely intuitive and places commonly used features and functions where they are easily accessed
• Dual-core main processor and dedicated graphics co-processor for amazing speed and performance
• Composite video input for marine camera, thermal imager or entertainment source
• Expandable networking up to (6) displays using SeaTalk hs networking
• Mix and match any combination of new a, c or e Series displays
• Works with Raymarine digital radar, ClearPulse sonar, thermal night vision systems, AIS receivers, instruments, autopilots and more functions where they are easily accessed
• Connectivity:

  • Using the e-Series displays built-in Wi-Fi and the Raymarine Viewer app or Raymarine Controller app you can view the entire c-Series display simultaneously, thanks to video streaming capability
  • View or control charts, sonar, radar and thermal night vision from anywhere onboard, right in the palm of your hand
  • You can also enjoy your favorite tracks direct from the helm using Bluetooth technology to remotely control the music functions on your Bluetooth phone

• Built in ClearPulse Sonar with 50/83/200 kHz operating frequencies up to 600 Watt RMS (Transducer not Included - Sold Separately)

LightHouse II User Interface:

• Clear and simple design
• The high-contrast color and bold new design of LightHouse II gives clear readability and ease-of-use in all lighting conditions
• It is smarter, sharper and more powerful
• Re-designed for clarity and simplicity, LightHouse II's fluid touchscreen experience makes accessing navigation information as simple as using a smartphone
• New menus make navigating to your favorite features quicker than ever, while toggle keys clearly indicate which features are enabled or disabled

  • Customize the menu with dark or light menu palette options

• LightHouse II also features a new DataBar Auto-Hide feature for maximum on-screen viewing
• Over 20 New Features, Including:

  • LightHouse™ Vector Charts for US Waters- high-quality navigation charts of US coastal waters and the Great Lakes, including Hawaii and Alaska        Built from official NOAA ENC data, LightHouse™ Vector charts are highly detailed for real-time navigation
  • Complete coverage is provided on a single micro SD memory card
  • Compatible with Raymarine's multifunction displays running Lighthouse II software
  • Waypoints and routes are simple

    • LightHouse II has all-new waypoint sorting and searching options
    • Making it easy to find, retrieve, and navigate to all your saved hotspots and destinations
  • LightHouse II supports up to (200) waypoints per route and uses the popular GPX file format for simple transfer
  • Multiple Sonar Unit Support

    • Use a CP100, CP300 or any of Raymarine's other Sonar Units on the same network
  • Expanded Waypoint Symbols and Colors
  • Support for Navionics Sonar Charts
  • GPX Waypoint Transfer
  • DataBar Auto-hide
  • a-Series pinch to zoom and more!

Specifications:

• Dimensions: (w x d x h) 290 x 64 x 173 mm (11.4 x 2.5 x 6.81 in)
• Nominal Voltage: 12 / 24 Volts DC
• Operating Voltage: 10.8 - 31.2 Volts DC
• Power Consumption (full brightness): 16 Watts Max
• Display: 9" TFT, Backlit LED, 800 x 480 Pixels
• Viewing Angle: 80° left/right and 80°/60° top/bottom
• Weight: 2.265 kg (4.99 lbs)
• Networking: Up to (6) Displays plus sensors
• Waterproofing: IPX6
• Mounting Methods:

  • Surface mount
  • Trunnion mount with Optional Bracket (Sold Separately)
• Cartography: LightHouse™ Vector Charts for US Waters
• GPS: Built-in 50 channels; WAAS, EGNOS and MSAS
• Operation Temp Range: -25° to 55° C (13° to 131° F)
• Connectivity:

  • (2) SeaTalk hs ports 100 Mbits/s. RayNet type
  • (1) SeaTalk ng connection
  • (2) NMEA 0183 ports:

    • NMEA port #1 Input and Output (4800/38,400 baud)
    • NMEA port #2 Input Only (4800/38,400 baud)
  • Wireless Connectivity:

    • Wi-Fi - 802.11 b/g
    • Bluetooth: AVRCP 2.1+EDR power class 1.5
  • Video: (2) BNC (female) composite video input connector (PAL/NTSC formats)
  • Video output: (1) VGA output (the R70003 Video accessory cable will be required, Sold Separately)

• Sonar: ClearPulse with 50/83/200 kHz operating frequencies up to 600 Watt RMS.
